Scripts Message options

After processing the message fields, the following operations can be done:

packet.action

Where possible actions are:

AddToTimeView() // message will be dispalyed in Time View

AddToTimeView(Color) // message will be dispalyed in Time
                     View with the given color (and so will

 the ‘Msg’ section in the message view)

(see Table 4 – Possible Time View colors for possible Time View colors)

AddToMessageView() // add this message to Message View – note
                    that in real time capture, the number of
                    messages that can be added to message
                    view using this command is limited to
                    1000

AddToMessageView(fieldName) // add this message to Message View
                               expand the field given in
                               fieldName

AddName(text) // change the ‘name’ of the messge as will apear
                             in the ‘msg’ section in message view. This
                  allow to mark messages by type (e.g. ack)

AddBookmark() // add time view bookmark under this message,
               note that number of bookmarks is limited to 50

AddBookmark(name) // adds time view bookmark with the given
                     name

AddMessageNote(content) // adds a user defined note to the message
                           with the specific content

StopCapture()   // stop data capture now

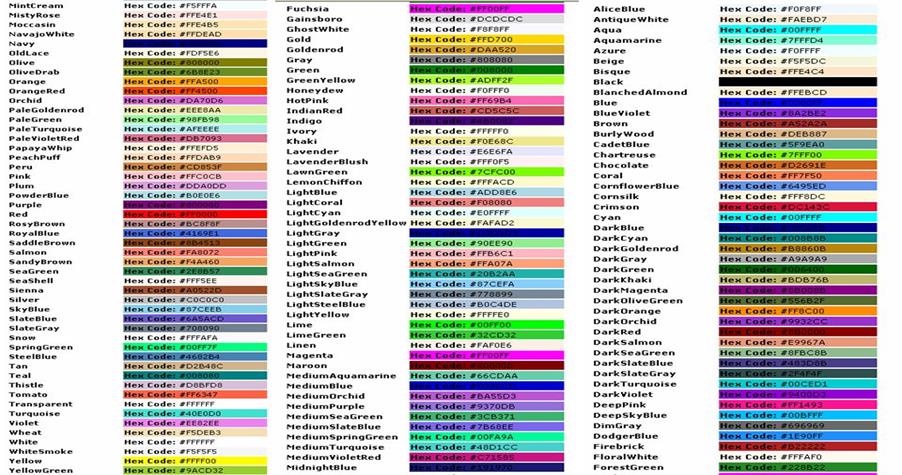

Table 4 – Possible Time View colors
