48.2.1 Saving Messages from the Time View section
When pressing the 'Save Messages To
New Data File' icon () in the Time View window section, all
messages currently visible (i.e. not hidden) included in the Time View window
section are saved into a new data capture .ANL file:

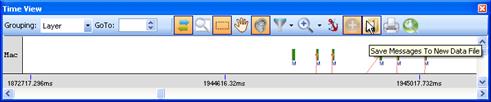

Figure 327 – 'Save Messages To New Data File' from the Time View window
48.2.2 Saving Messages from the Message View section
When pressing the 'Save Messages To
New Data File' icon () in the Message View window section, all
messages currently included in the active tab of the Message View window section
are saved into a new data capture .ANL file:

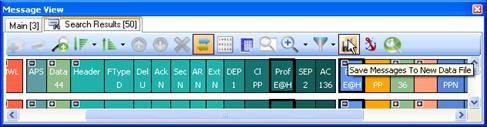

Figure 328 – 'Save Messages To New Data File' from the Message View window
Saving messages from the Message View section allows easily saving of selected messages that have been filtered by the user based on chosen criteria (see chapter IV.14) and/or messaged that have been edited by the user (see par.1.1), into an .ANL data-capture format file.
Note: Messages will be sorted by their start time and renumbered in the new file.
When opening an .ANL file that contains at least one modified message, a note will be shown in red in the new file form and this will be indicated in the analyzer main window title line by the word '(modified)':

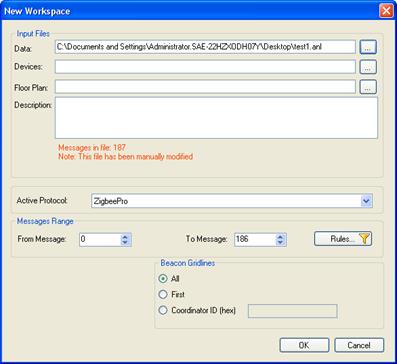

Figure 329 – Opening a modified .ANL data-capture file
Figure 330 – Opening a modified .ANL is shown in the main window title line
A previously modified message that is included in the .ANL file being loaded will show a relevant tooltip when pointing with the mouse on its Msg field (in both the Message and Message Tree views):

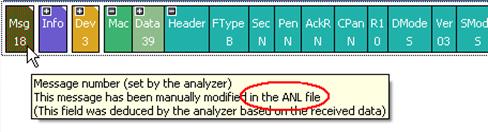

Figure 331 – Previously modified message tooltip
Obviously, these messages cannot be restored to their original value.
